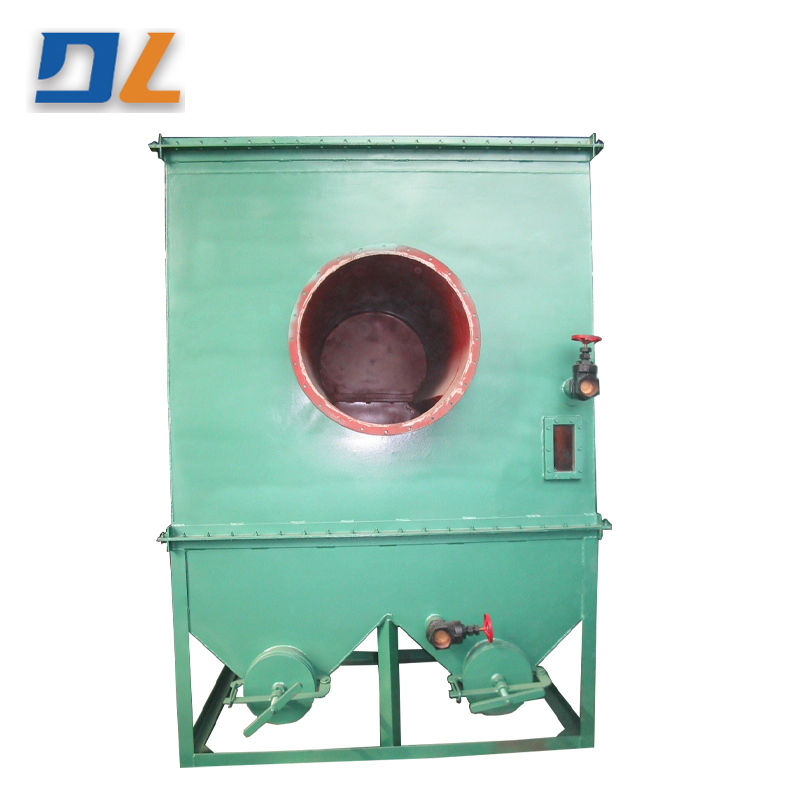

F37 Series Backwater Wet Dust Collector
The dust collector is suitable for the purification of gas in foundry workshops, especially the occasions with high dust content, high gas temperature and high purification requirements, such as falling sand cleaning, sand processing department, etc. Any hydrophilic dust can be used.
When working, the dust-laden air enters the settling chamber from the air inlet. Due to the sudden expansion of the gas volume, the large particles of dust settle down, and then the air passes through the water area between the arc-shaped plates on both sides and stirs the water, and the dust-laden air and water are fully mixed. , a water curtain is formed at the outlet to capture the finer dust, and the purified air is discharged by the fan through the water baffle and the air outlet.
Technical Specifications
model | F3714 | F3719 | F3725 | ||
Treated air volume (m + / h) | 10000~14000 | 14000~19000 | 19000~25000 | ||
Resistance loss (mm water column) | 130~170 | 130~170 | 130~170 | ||
Dust removal efficiency (%) | >95 | >95 | >95 | ||
Effective width (mm) | 1800 | 1800 | 1800 | ||
Effective length (mm) | 1200 | 1600 | 2200 | ||
With the fan | model | 4-72-11N25A | 4-72-11N26C | 4-72—11N98C | |
Speed (r/min) | 2900 | 2240 | 1800 | ||
The motor | model | Y160M2-2 | Y180M-4 | Y200L1-2 | |
Power (kw) | 15 | 18.5 | 30 | ||
Machine mass (kg) | 1035 | 1243 | 1549 | ||
