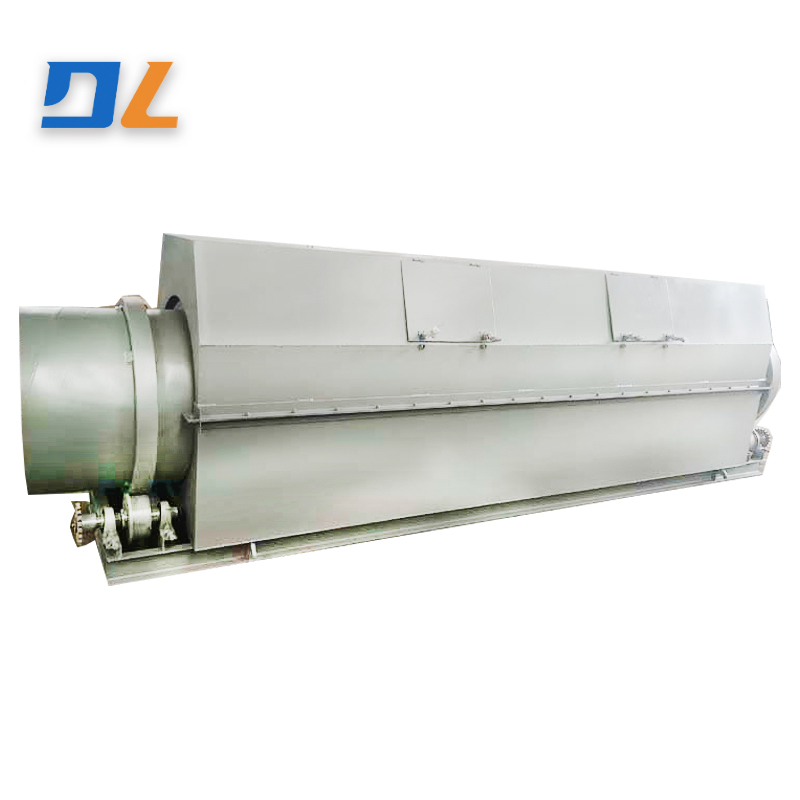

FTT-05 water-cooled drum is a new type of high-efficiency cooling equipment, which is mainly used for cooling and cooling in the process of lamination production.
This series of rollers ∮=800.
The machine is mainly composed of a drum body, a drive reducer, a base, a rain shower system, and a water tank.
The drum is supported by four rollers, and two deceleration motors are installed on both sides of the drum to rotate synchronously. The roller rotates along the roller under the action of the driving force of the reducer, the material slides forward continuously on the helix, and the cooled sand is discharged from the discharge port.
The equipment is installed horizontally and has a conveying function while cooling.
It has the characteristics of low power consumption, compact structure, high cooling efficiency, and small dynamic load transmitted to the foundation.
technical parameter:
Roller size----------------------------5000mm×φ800mm
Drive Motor Model----------------------XWD4-23-2.2KW×2
Power----------------------------------2.2Kw×2 sets
