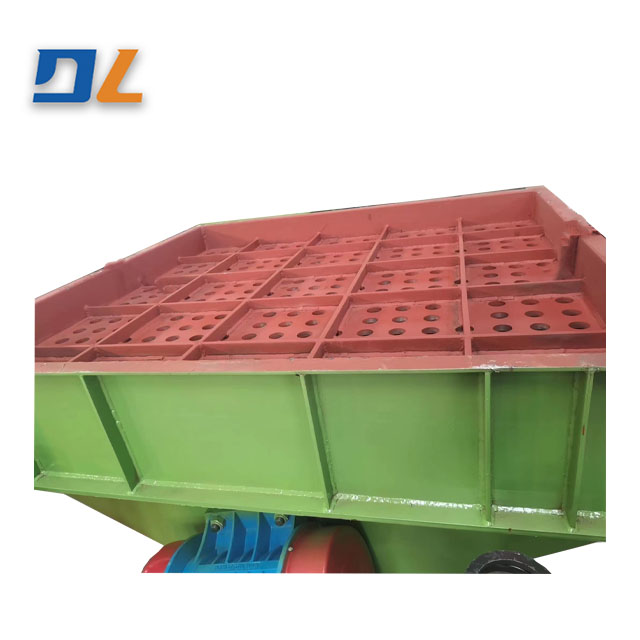

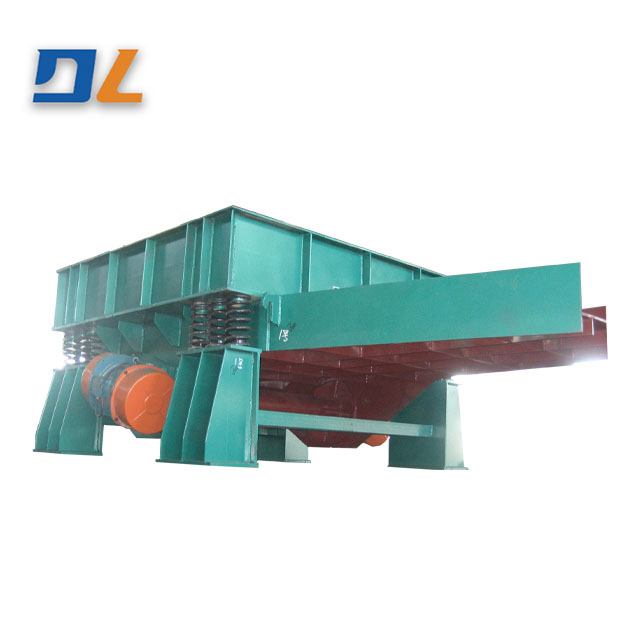

L12seriesfixed vibrating sand remover
Purpose:
This series of sand dropping machine is suitable for small and medium-sized casting mold dropping sand after manual modeling, mechanization and semi-automatic casting in casting workshop, so that the molding sand and sand box, casting mold separation. The separated sand is further broken up and dropped through the grid. According to the weight and size of the workpiece, two or four parallel.
Main technical parameters
Parameters Model | Payload(T) | Table size(mm) | Exciting force(n) | Installed power(kw) |
L121 | 1 | 1500×1400 | 2×20000 | 2×1.5 |
L122 | 2 | 1800×1600 | 2×40000 | 2×3 |
L123 | 3 | 2000×1800 | 2×50000 | 2×3.7 |
L125 | 5 | 2200×1800 | 2×75000 | 2×5.5 |
L128 | 8 | 2760×2000 | 2×100000 | 2×7.5 |
L1210 | 10 | 3000×1960 | 2×120000 | 2×9.5 |
L1212 | 12 | 3000×2000 | 2×160000 | 2×12 |
L1215 | 15 | 3200×2300 | 2×180000 | 2×14 |
L1220 | 20 | 3000×5000 | 2×180000 | 2×14 |
