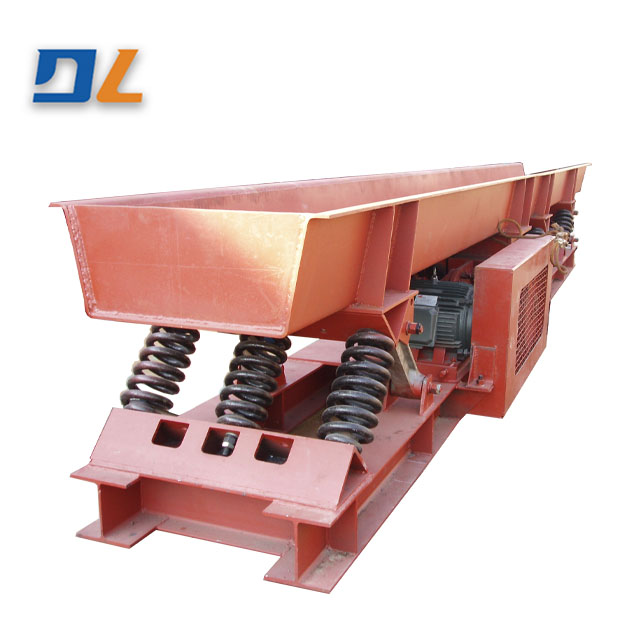

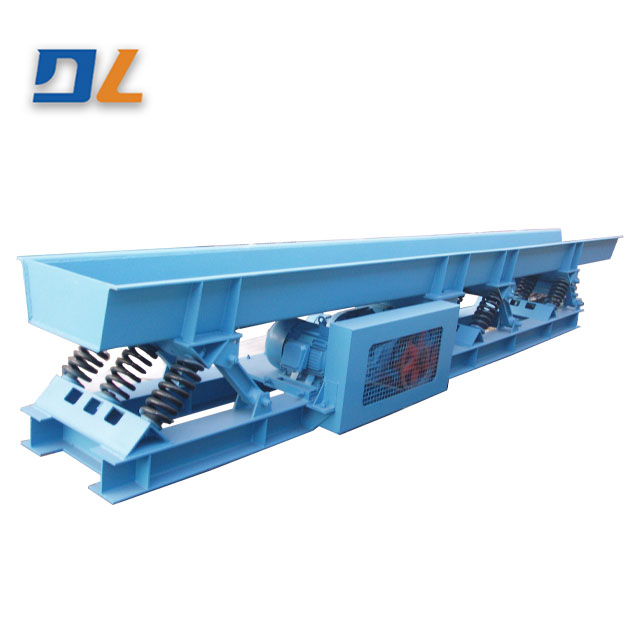

Purpose: The equipment is used for conveying small castings, casting cover and casting sand.
Features:
1, stable operation, low energy consumption, low noise.
2, large bearing capacity, can simultaneously transport multiple molding line production of high temperature castings.
3. The casting is in a sliding state during the conveying process, which can make the old sand on the surface vibrate while cooling.
4. It can be used in series to realize long distance and climbing transportation.
5. This model has been applied for national patent.
Main technical parameters:
Model | Y368 | Y369 | Y3610 | Y3612 |
Nominal groove width(mm) | 800 | 900 | 1000 | 1200 |
Nominal slot height(mm) | 350 | 350 | 390 | 420 |
Slot form | Open | Open | Open | Open |
Delivery volume(type/h) | 180 | 180 | 180 | 180 |
Angle of installation | Level | Level | Level | Level |
Power(kw) | 5.5 | 7.5 | 11 | 15 |
