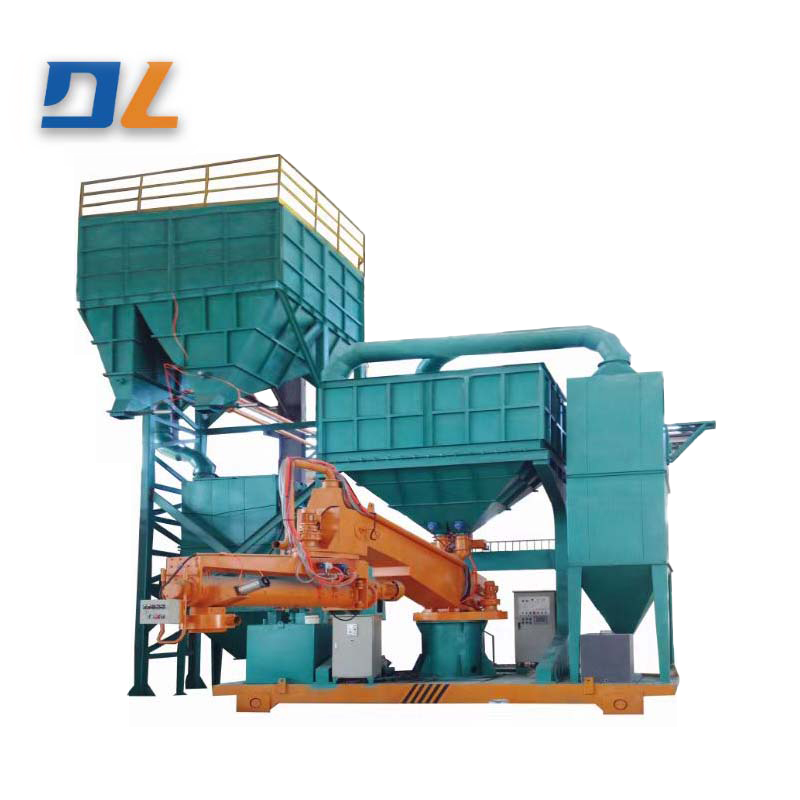

S28 Mobile double arm resin sand mixer
USES:
Widely used in mixing large cast iron, cast steel and other castings of self-hardening sand, the machine is mobile adjustable lifting sand mixer, easy to operate, the function of gold, can be adjusted and selected according to different material resin sand process characteristics. The machine is mainly composed of sand mixing machine, walking mechanism, sand bucket, electric control system, air control system, dust removal system and so on.
Features:
The big arm of the sand mixer adopts the rotary mode and the forearm is automatic/manual.
A variety of liquid material adding functions are preset to meet the needs of different proportions of surface sand, back sand, new sand and reclaimed sand. Open sand mixing tank body, stainless steel lining, easy to clean and maintain; Mixed sand blade inlaid hard alloy cutter head, long service life.
The head of the machine is provided with a tailing control device, deodorant dust removal device.
Hydraulic or electric push rod lifting, lifting range can be set according to user requirements.
The upper four-link mechanism ensures that the lifting of the big arm is always in the horizontal position, with compact structure and beautiful appearance.
Mobile car frequency conversion control start and stop, can realize fast and slow action; The safety system is equipped with statistical balance weight, track cleaning and sound and light alarm devices.
| Model Parameters | S2810 | S2815 | S2820 | S2825 | S2830 | S2840 | |
| Productivity(t/h) | 10 | 15 | 20 | 25 | 30 | 40 | |
| Turning radius(mm) | 5500 | 5500 | 5500 | 5500 | 5500 | 7000 | |
| Height of sand outlet(mm) | 1200-2200 | 1200-2200 | 1100-3000 | 1100-3000 | 1100-3000 | 700-2400 | |
