Characteristic

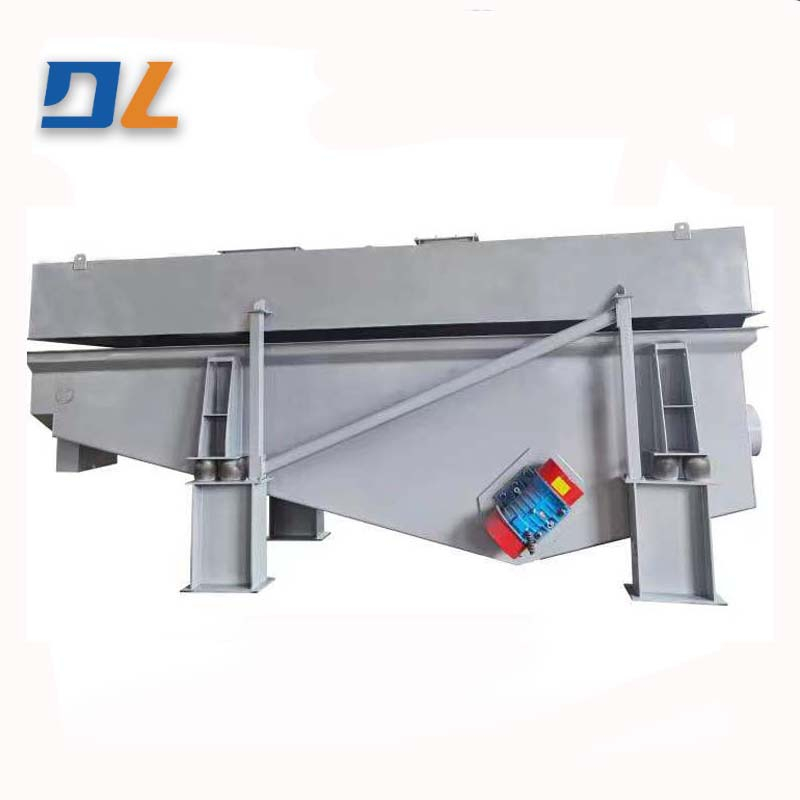

The vibro boilling cooling bed is composed of a porous fish scale bed body, an all blowing system, an exhaust systems and ahumidifying agitator.
The hot used sand falls into the orifice plate of the vibration boilling cooling bed and sprays water through the humidifer while moving along the vibration direction. The air blasts ystemblows cold ar from the bottom of the fish scale plate to make the hot sand bobil. The air and the hot sand are in full contact and take away the water and air from the hot sand. The hot sand is discharged by the exhaust system to achieve the purpose of cooling.
Main technical parameters
Parameters Name | SL20 | SL40 | SL60 | SL80 | SL100 | SL120 |
Handling ability(t/h) | 20~30 | 30~40 | 50-70 | 80~100 | 100~120 | 100~120 |
Vibration motor power(kw) | 2×1.5 | 2×2.2 | 2×5.5 | 2×7.5 | 2×7.5 | 2×9.5 |
Blower power(kw) | 5.5 | 7.5 | 15 | 22 | 30 | 37 |
Blasting volume(m³/h) | 6000 | 8000 | 14000 | 20000 | 28000 | 40000 |
Bed size Lx width cm | 3800×700 | 4900×1000 | 6470×1500 | 6470×1800 | 8000×2300 | 8200×2500 |
