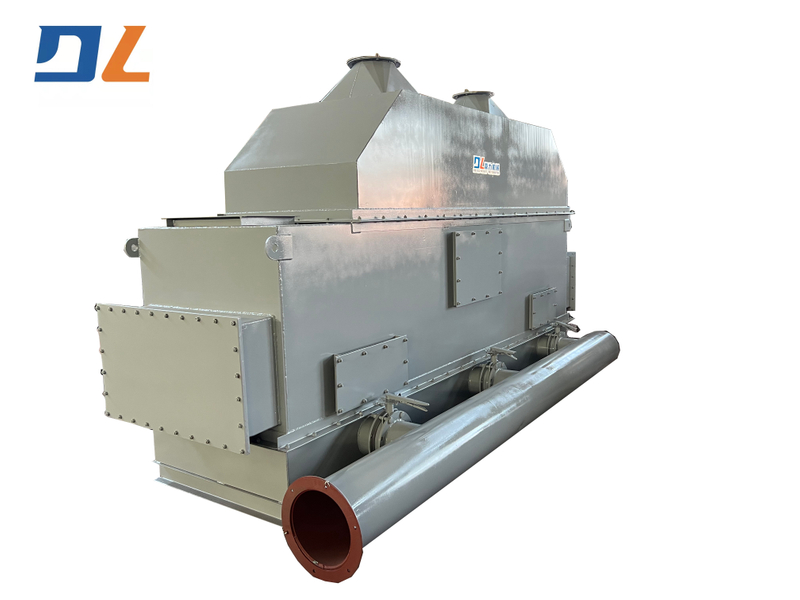

FTB Boiling cooling bed
Uses: This series of equipment is mainly used for cooling and film removal of regenerated resin sand and hot sand covered with iron mold sand.
Features: While cooling and removing film, this series of equipment also has the functions of removing metal particles, removing micro-powder film debris, etc. It is widely used in large and medium-sized resin sand production lines.
This series of equipment is a continuous cooler. After the loose old sand enters the fluidized bed, it is in a boiling state under the action of strong blowing by a high-pressure fan. Under the action of strong exhaust air and cooling water, the old sand can be fully cooled to remove the film.
Main technicalparameters
Model Parameters | FTB10 | FTB20 |
Productivity(t/h) | 8-10 | 15-20 |
Sandtemperatureafter cooling('C) | 20-35 | 20-35 |
Fan power(kw) | 30 | 45 |
Inlet watertemperature(℃) | <15 | <15 |
Intake air volume(m3/h) | 1800-2400 | 2500-3000 |
Dustcollectionair volume(m3/h) | 2800 | 3000 |
Circulatingair volume(m3/h) | >8 | >10 |
FTB Boiling cooling bed
Uses: This series of equipment is mainly used for cooling and film removal of regenerated resin sand and hot sand covered with iron mold sand.
Features: While cooling and removing film, this series of equipment also has the functions of removing metal particles, removing micro-powder film debris, etc. It is widely used in large and medium-sized resin sand production lines.
This series of equipment is a continuous cooler. After the loose old sand enters the fluidized bed, it is in a boiling state under the action of strong blowing by a high-pressure fan. Under the action of strong exhaust air and cooling water, the old sand can be fully cooled to remove the film.
Main technicalparameters
Model Parameters | FTB10 | FTB20 |
Productivity(t/h) | 8-10 | 15-20 |
Sandtemperatureafter cooling('C) | 20-35 | 20-35 |
Fan power(kw) | 30 | 45 |
Inlet watertemperature(℃) | <15 | <15 |
Intake air volume(m3/h) | 1800-2400 | 2500-3000 |
Dustcollectionair volume(m3/h) | 2800 | 3000 |
Circulatingair volume(m3/h) | >8 | >10 |
