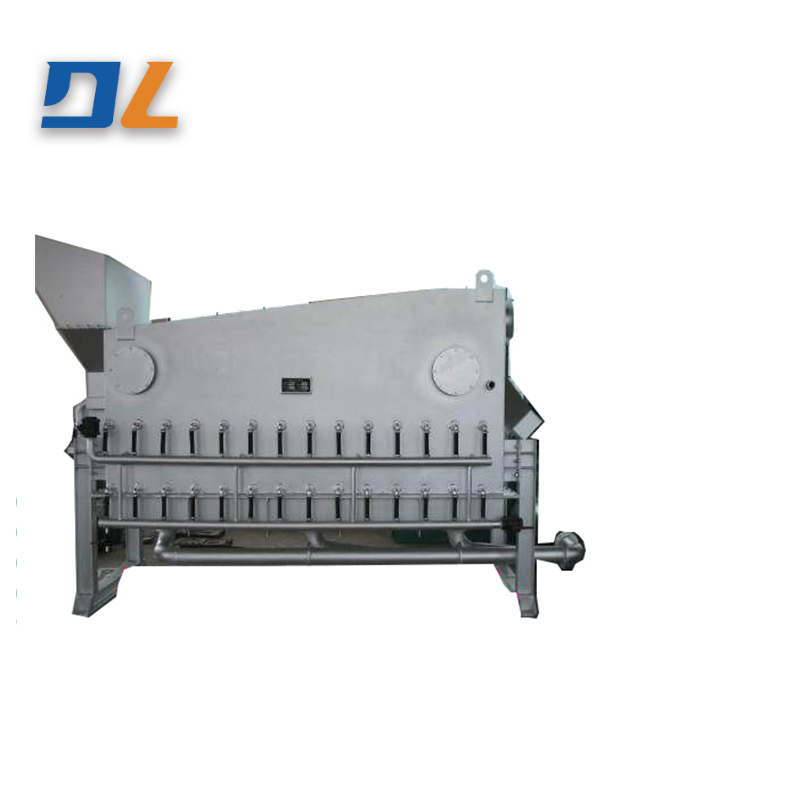

Working principle of S56 series fluidized cooling bed:
This series of products are mainly used for cooling and stripping after regeneration. It also has the function of removing metal particles and fine powder film debris. The device is a continuous cooler. The loose old sand enters the fluidized bed and is in a boiling state. The mouth begins to meander around the serpentine. Under the action of wind and cooling water, the old sand is fully cooled and discharged to the sand outlet. During this period, extensive dust removal of the boiling dust ensures the recovery of used sand. process requirements.The main technical parameters
Model | S56411 | S56511 | S56811 | S56101I |
productivity | 4~6t/h | 6~8t/h | 8~10t/h | 10-15t/h |
Sand temperature after cooling (℃) | 20~35 | 20~35 | 20~35 | 20~35 |
Fan power(kw) | 15 | 18.5 | 22 | 30 |
Inlet water temperature (℃) | ≤15 | ≤15 | ≤15 | ≤15 |
Inlet air volume (m/h) | 1200~1440 | 1500-1800 | 1800~2440 | 2500~3000 |
Vacuuming air volume (m) | 1800 | 2200 | 2800 | 3000 |
Circulating water volume (m/h) | >5 | >6 | >8 | >10 |
