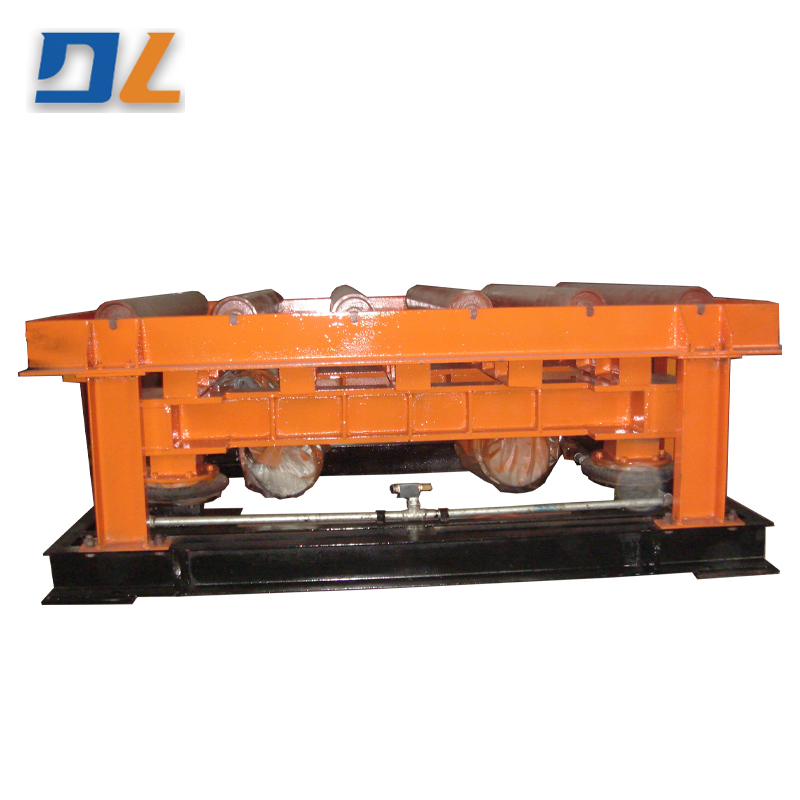

Z29 Series Mechanical Vibration Table
use:
This machine is mainly used for sand molding in resin sand and water glass sand molding. It can also be used for the compaction of clay sand or other self-hardening sand, and it is an ideal equipment for sand compaction in the foundry industry.
Features:
The device has a compact and reasonable structure, is easy to operate and has a wide range of use.
The vibration excitation device is supported by a gas spring, and the excitation force is large and stable during operation.
The exciting force can be adjusted in time according to the needs of the process.
The electrical system of the machine is matched with the sand mixer, and an editable program controller (PLC machine) is adopted, which is convenient for operation and maintenance.
Parameters Model | Payload(T) | Exciting force(kn) | Table size(mm) | Power(kw) |
Z291 | 1 | 4×5 | 1250×1200 | 4×0. 25 |
Z292 | 2 | 4×8 | 1250×1200 | 4×0.4 |
Z293 | 3 | 4×16 | 1500×1200 | 4×0. 75 |
Z294 | 4 | 4×25 | 1550×1200 | 4×1.5 |
Z295 | 5 | 4×25 | 1800×1200 | 4×1.5 |
Z296 | 6 | 4×25 | 2545×1400 | 4×1.5 |
Z298 | 8 | 4×32 | 2945×1400 | 4×2.2 |
Z2910 | 10 | 4×40 | 2945×1400 | 4×2.2 |
