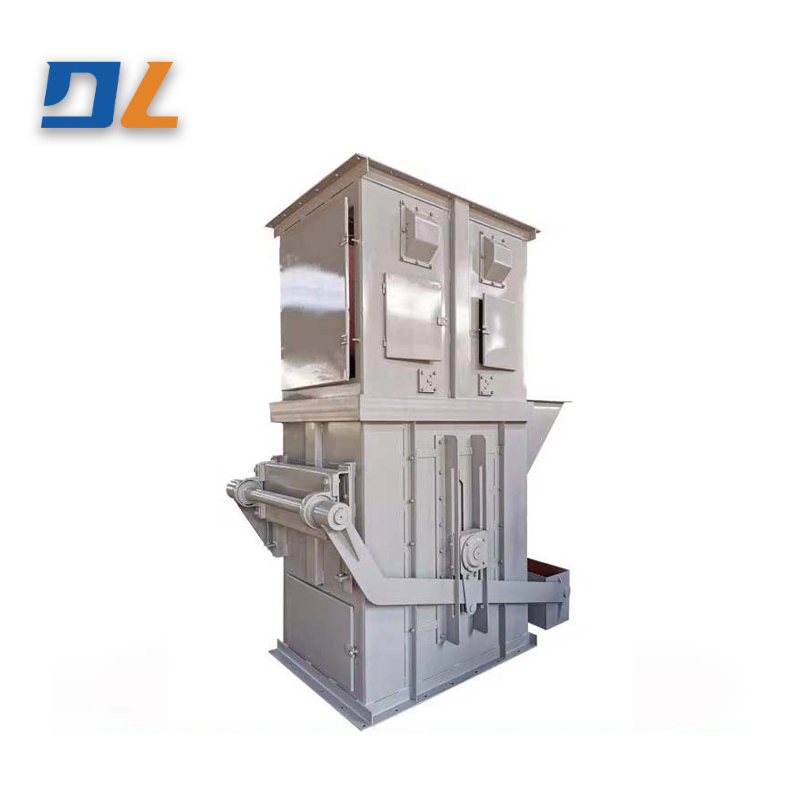

GTD series high efficiency bucket elevator
Features: The bucket elevator of this system is an improved version of the TD series bucket elevator, and the conveying capacity is larger. This machine is suitable for vertical upward conveying of powdery, granular and small bulk bulk materials. Such as coal, sand, coke powder, cement and crushed ore. GTD series bucket elevator has six specifications: GTD400, GTD500, GTD700, GTD800, GTD1000, GTD1400. The double (four) discharge hoppers are staggered, and the multi-row hoppers can be arranged in an appropriate amount to increase the conveying capacity. The tensioning method adopts the free tension of heavy hammer to ensure the reliability during transportation.
specifications Model | Transport capacity(m3/h) | Belt speed(m/s) | Number of bucket rows | Belt speed(mm) | Height of feed inlet |
GTD400 | 40~50 | 1.3 | 2 | 400 | 1450 |
500 | 1500 | ||||
GTD500 | 50~70 | ||||
700 | 1600 | ||||
GTD700 | 70~90 | 1.6 | |||
800 | 1650 | ||||
GTD800 | 80~100 | ||||
4 | 1000 | 1700 | |||
GTD10000 | 100~150 | ||||
GTD1400 | 160~200 | 1400 | 1800 |
