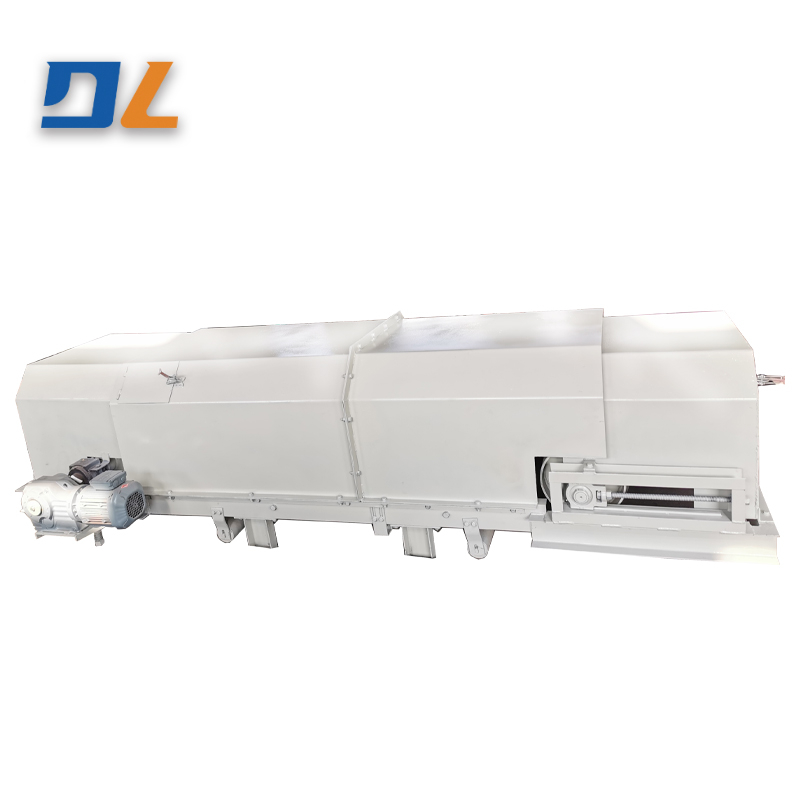

Y41 Series Belt Feeder

Availability:
Quantity:

Y41 series belt feeder


This series of belt feeders are mainly used for feeding materials such as new sand, molding sand and treated used sand in foundry workshops. It is not suitable for materials with large lumps, iron impurities and high abrasiveness.


The feeding capacity of the machine is large, it is convenient to adjust the feeding amount, and it can also be quantitatively fed under the control of the time relay. According to the feeding direction, the machine can be divided into one-way feeding and two-way feeding; according to the installation method, it can be divided into hanging type and seat type. In order to ensure the accuracy of feeding, the active roller is covered with glue to increase the friction coefficient between the tape and the active roller. The size of the rectangular discharge opening of the silo is large, and the material is not easy to arch. The machine is compact in structure and reliable in use. It has many common parts with belt conveyors, so it is easy to maintain.

When in use, in order to reduce the pressure of the material in the silo on the feeder, a decompression plate should be installed at the outlet of the silo.


Y415

Y417

Y418

Y4110

Tape width B (mm)

500

650

800

1000

Roller center distance

L (mm)

L=2000

one-way   feeding

one-way   feeding

one-way   feeding

one-way   feeding


L=2500

one-way   feeding

one-way   feeding

one-way   feeding

one-way   feeding


L=3000

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding

one-way feeding


L=4000

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding


L=5000

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding


L=6000

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding

One-way   and two-way feeding


Belt speed (m/s)

0.4

0.4

0.4

0.4

Feeding rate (m3/hour)

20~40

25~50

70~140

95~190

reduce

speed

Electricity

model

YTC562

YTC751

YTC752

YTC902


rated   power

(kilowatt)

L=2000

2

3.8

I

I


L=2500

2

3.8

5.2

I


L=3000

2 (2 units)

3.8(2 units)

5.2 (2   units)

7


L=4000

2.8 (2   units)

5.2 (2   units)

5.2 (2   units)

7 (2 units)


L=5000

2.8 (2   units)

5.2 (2   units)

7 (2   units)

9.5 (2 units)


L=6000

2.8 (2   units)

5.2 (2   units)

7 (2   units)

9.5 (2   units)


speed

(rev/min)

L=2000

31

31

I

I


L=2500

31

31

31

I


L=3000

31

31

31

31


L=4000

48

48

31

31


L=5000

48

48

48

48


L=6000

48

48

48

48


Machine   maximum quality

(kilogram)

L=2000

2450

3200

I

I


L=2500

2650

3350

3700

I


L=300

2750

3550

3900

4100


L=4000

3000

3800

4200

4500


L=5000

3250

4050

4550

5000


L=6000

3500

4300

4850

5400
