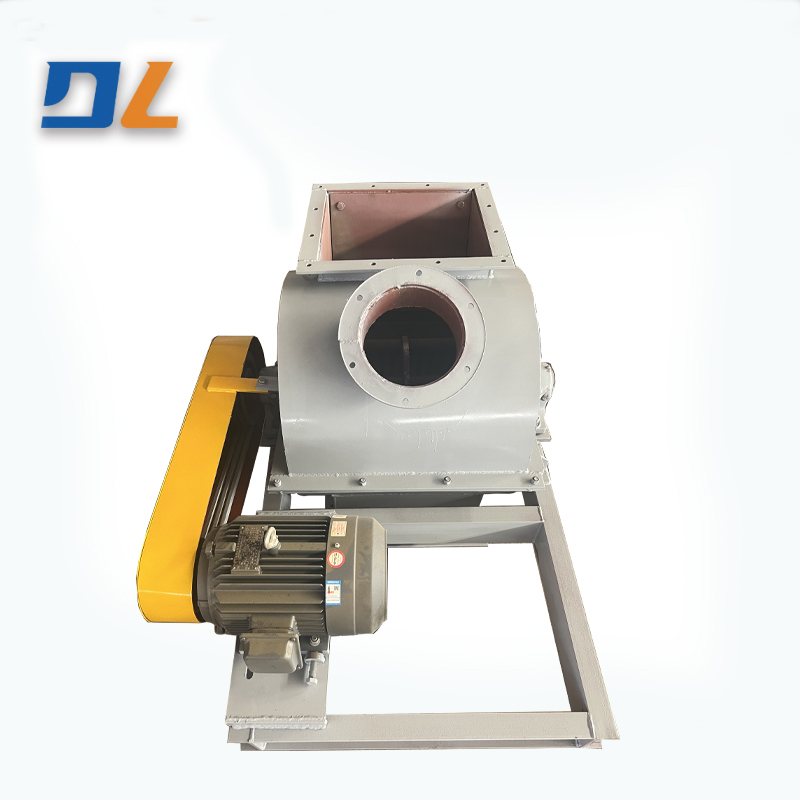

S37 Plate crusher
It is mainly used for old sand crushing dry and wet molding in casting workshop. It has the advantages of compact structure, high crushing efficiency and small power consumption.
The machine is mainly composed of blade rotor, transmission device and frame. The blade is set on the small axis of the rotor, and can swing freely around the small axis. When working, the blade rotates at high speed and is in an open state under the action of centrifugal force, and the kinetic energy of the blade will break the sand group. When encountering a hard block, the blade can swing back around the small axis to protect the equipment.
The material should be screened before entering the crusher to prevent iron debris from damaging the equipment.
The machine is equipped with dust removal joint, increase the air volume of the old sand has a certain role in removing plaster regeneration.
model | S3720 | S3740 | S3760 | S37100 | ||
Productivity m/h | 20 | 40 | 60 | 100 | ||
rotor | diameter mm | 480 | 580 | 580 | 580 | |
speedr/min | 716 | 597 | 593 | 601 | ||
motor | model | Y112M-4 | Y1325-4 | Y132M-4 | Y160M-4 | |
Power Kw | 4 | 5.5 | 7.5 | 11 | ||
Dust air volume m/h | 1500～1800 | 2000～2500 | 2500～3000 | 3000～5000 | ||
Overall size mm | 1200×925×701 | 1470×1048×841 | 1470×1130×870 | 1500×1241×875 | ||
Machine weight kg | 385 | 610 | 680 | 780 | ||
