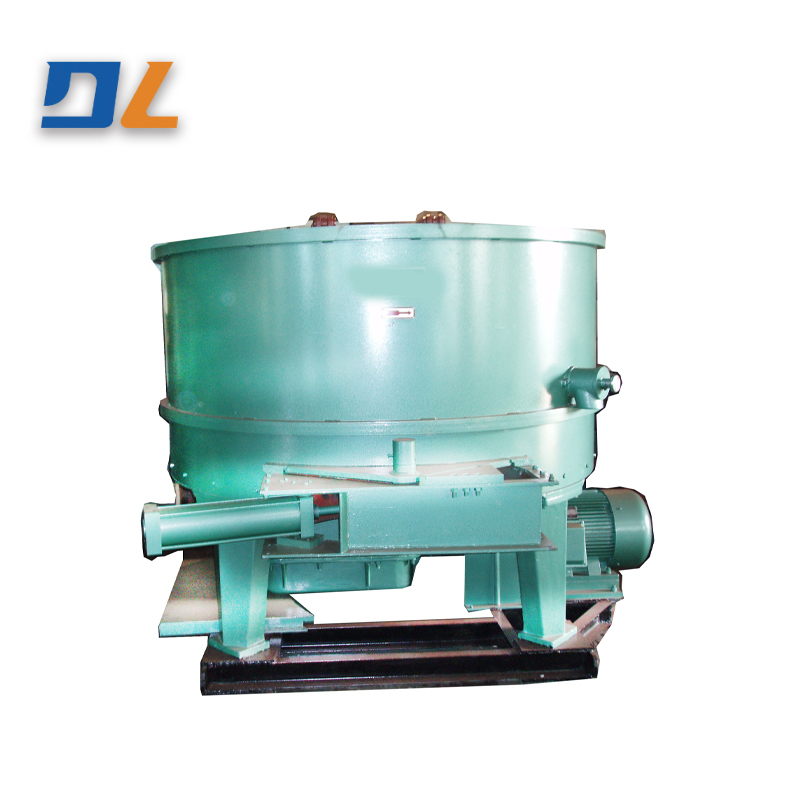

S11 series wheel sand mixer
use:
This machine is mainly used for the mixing of moulding sand in foundry workshops. It can be used for single sand, dry sand, self-hardening sand, surface sand and back sand in the mixer. Can also be used for glass, ceramics, refractory materials. and other industries to mix various powdery and granular materials.
use:
This series of equipment is mainly used for the mixing of surface sand and single sand in foundry workshops, as well as the mixing of core sand and self-hardening sand in large foundry workshops.
feature:
The sand mixing efficiency is high, the quality is good, and the scope of application is wide.
Scraper surfacing welding tungsten carbide and other new materials to improve the life of wearing parts.
Fluid coupling, alloy steel gear, lubrication controller. Ensure that the transmission system is stable and reliable, and can start with load and overload protection.
The side discharge door can be opened flexibly and the main operation is reliable, which completely solves the problem of sand leakage at the bottom.主要技术参数
The main technical parameters
Product model | Parameters Name | Disk meridian(mm) | Once feeling capacity(kg) | Productivity(t/h) | (kw) Main motor power(kw) |
S1110 | Wheel sand mixer | ∅1000 | 110 | 2.5 | 4 |
S1112 | Wheel sand mixer | ∅1200 | 200 | 5 | 7.5 |
S11160 | Wheel sand mixer | ∅1600 | 500 | 12 | 18.5 |
S1118 | Wheel sand mixer | ∅1800 | 650 | 15 | 22 |
S1120C | Wheel sand mixer | ∅2000 | 800 | 20 | 30 |
S1120D | Wheel sand mixer | ∅2000 | 800 | 20 | 30 |
S1120E | Wheel sand mixer | ∅2000 | 900 | 22 | 37 |
S1122E | Wheel sand mixer | ∅2240 | 1350 | 30 | 55 |
S1125 | Wheel sand mixer | ∅2500 | 1500 | 45 | 75 |
