Features:

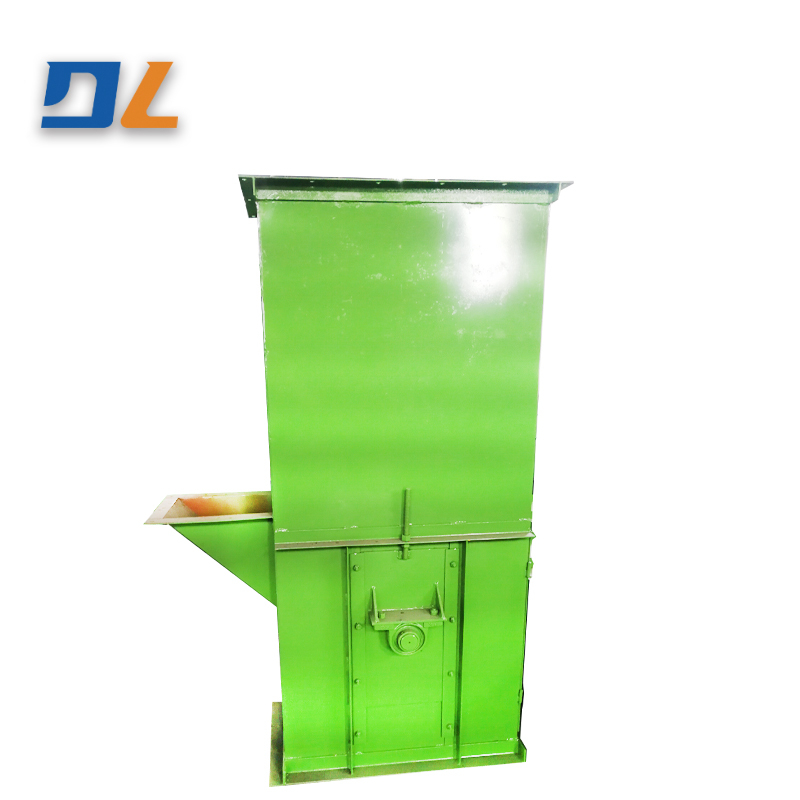

This machine is a modified design of D-type bucket elevator. It is a commonly used vertical conveying equipment in mechanized foundry workshops. It is mainly used for lifting old sand, waste sand, new sand, cleaning iron pellets and other bulk materials. It cooperates with belt conveyors and other equipment, and can be arranged into various forms of conveying systems.
Model | Y3716 | Y3725 | Y3735 | Y3745 | |||||
Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | ||
material fight | Bucket width(mm | 160 | 250 | 350 | 450 | ||||
Capacity(liters) | 1.10.65 | 3.22.6 | 7.87.0 | 14.515 | |||||
Bucket distance(mm) | 300 | 400 | 500 | 640 | |||||
Transport capacity(m3/h) | 8 | 3.1 | 21.6 | 11.8 | 42 | 25 | 69.5 | 48 | |
Weight per meter of hopper and adhesive tape(kg) | 4.72 | 3.8 | 10.2 | 9.4 | 13.9 | 12.1 | 21.3 | 21.3 | |
Conveying | Width(mm | 200 | 300 | 400 | 500 | ||||
Number of plies | 4 | 5 | 4 | 5 | |||||
Outer glue layers(mm) | 1.5/1.5 | 1.5/1.5 | 1.5/1.5 | 1.5/1.5 | |||||
Operating speed of hopper(m/s) | 1.25 | 1.25 | 1.25 | ||||||
Rotation number of driving drum(rpm) | 47.5 | 47.5 | 47.5 | 47.5 | |||||
Maximum size of conveyed materials(mm) | 25 | 25 | 25 | 25 | |||||
