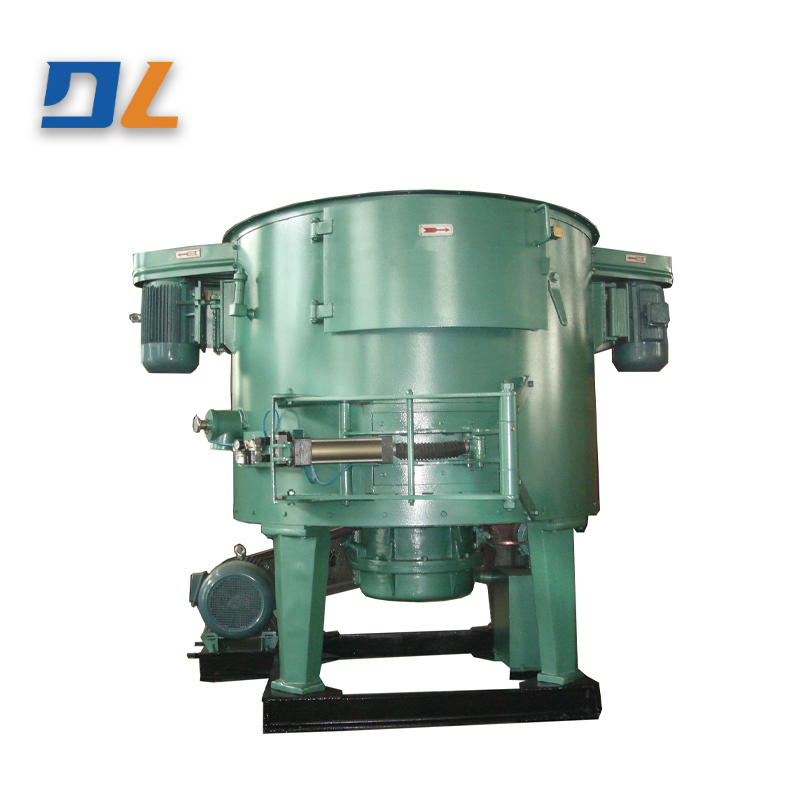

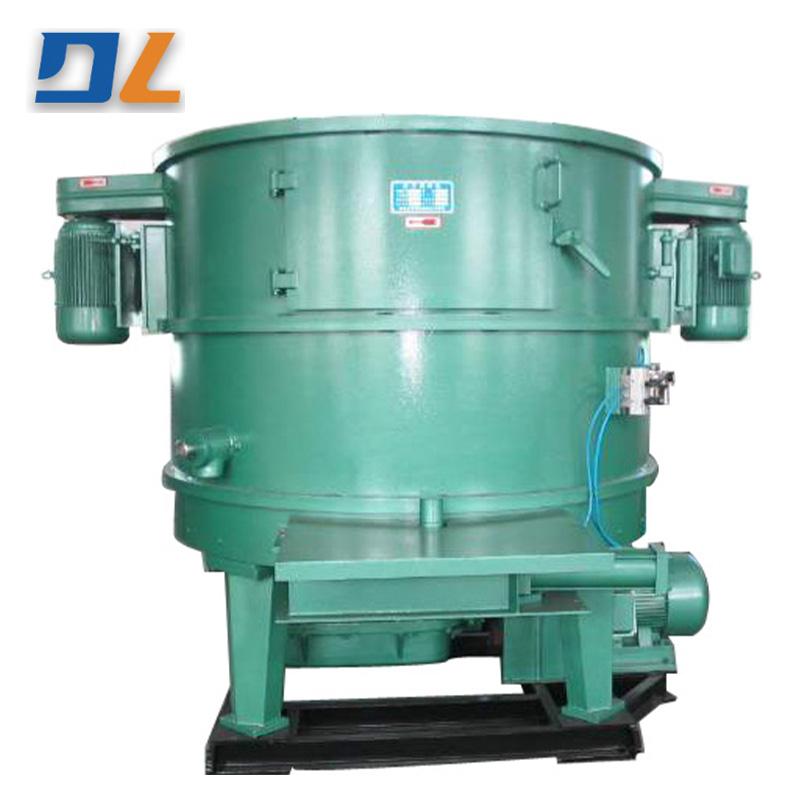

S14 series rotor sand mixer
Uses: This machine is mainly used for the mixing of molding sand in foundry workshops. It can be used to mix single sand for machine molding, dry film sand, self-hardening sand, surface sand and back sand. It can also be used for glass and ceramics. , refractory and other industries to mix various powder and granular materials.
Features: Alumina wear-resistant ceramic bottom plate, tungsten carbide surfacing, greatly improving the life of wearing parts. Hydraulic coupling, alloy steel gears, and lubricating control machine ensure that the transmission system is stable and reliable, and can start under load.
Features: The latest side discharge door opens flexibly, works reliably, and completely solves the problem of sand leakage at the bottom. The symmetrically opened access door greatly facilitates maintenance and cleaning.
The steel structure base makes the machine installation very convenient.
The main technical parameters
Product model | Parameters Name | Disk meridian(mm) | Once feeling capacity(kg) | Productivity(t/h) | Main motor power(kw) | Rotor machine power(kw) |
S1410A | Rotor mixer | ∅1000 | 200 | 5 | 4 | 2×2.2 |
S1412 | Rotor mixer | ∅1200 | 330 | 6-8 | 7.5 | 2×4 |
S1416A | Rotor mixer | ∅1600 | 660 | 8-12 | 15 | 2×7.5 |
S1418 | Rotor mixer | ∅1800 | 600-800 | 12-16 | 22 | 2×11 |
S1420J | Rotor mixer | ∅2000 | 900-1100 | 18-22 | 30 | 2×15 |
S1420E | Rotor mixer | ∅2000 | 1000-1200 | 20-25 | 37 | 2×18.5 |
S1420T-B | Rotor mixer | ∅2000 | 1100-1400 | 22-28 | 55 | 2×22 |
S1422 | Rotor mixer | ∅2240 | 1250-1500 | 25-30 | 55 | 2×30 |
S1422E | Rotor mixer | φ2240 | 1400-1750 | 28-35 | 75 | 2×30 |
S1425 | Rotor mixer | ∅2500 | 1750-2000 | 35-40 | 75 | 2×30 |
S1425D | Rotor mixer | ∅2500 | 2000-2250 | 38-45 | 90 | 2×37 |
S1425F | Rotor mixer | ∅2500 | 2250-2800 | 45-55 | 110 | 2×45 |
S1428 | Rotor mixer | ∅2800 | 2800-3500 | 55-70 | 132 | 2×55 |
