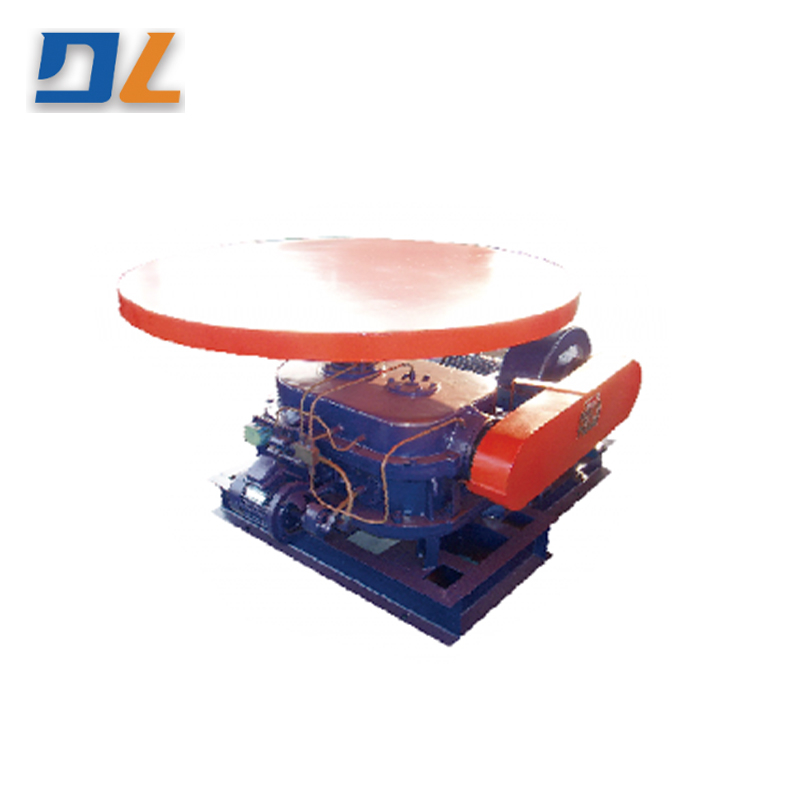

Y 44 Series Disc Feeder
The equipment is suitable for feeding new sand, old sand or molding sand, with stable operation and uniform feeding. Adjust the gap between the adjustment sleeve and the disc to adjust the feeding amount.
This series of feeders have two transmission modes: open type and closed type. The disc feeder disc of closed type transmission is paved with diabase cast stone guard plate.
The adjustment sleeve is a matching part of the disc feeder. There are two types of round mouth and square mouth. Users can specify when ordering according to their needs.
Technical Specifications
model | Y4410 | Y4415 | Y4420 | |
Disc diameter D (mm) | 1000 | 1500 | 2000 | |
Disc speed (r/min) | 7.6 | 5.35 | 5.35 | |
Productivity (m³/hour) | 14 | 25 | 32 | |
Geared motor | model | Y4410 | Y4415 | Y4420 |
Power (kW) | 2 | 2 | 2 | |
Speed (r/min) | 44 | 31 | 31 | |
Technical Specifications
model | Y4415B | Y4420B | |
Disc diameter D (mm) | 1500 | 2000 | |
Disc speed (r/min) | 5 | ||
Productivity (m³/hour) | 25 | 80 | |
motor | model | Y160M—6 | |
Power (kW) | 7.5 | ||
Speed (r/min) | 970 | ||
Oil pump motor | model | Y801—4 | |
Power (Watts) | 550 | ||
Speed (r/min) | 1390 | ||
oil pump | model | CB—B10 | |
Flow (L/min) | 10 | ||
