use:

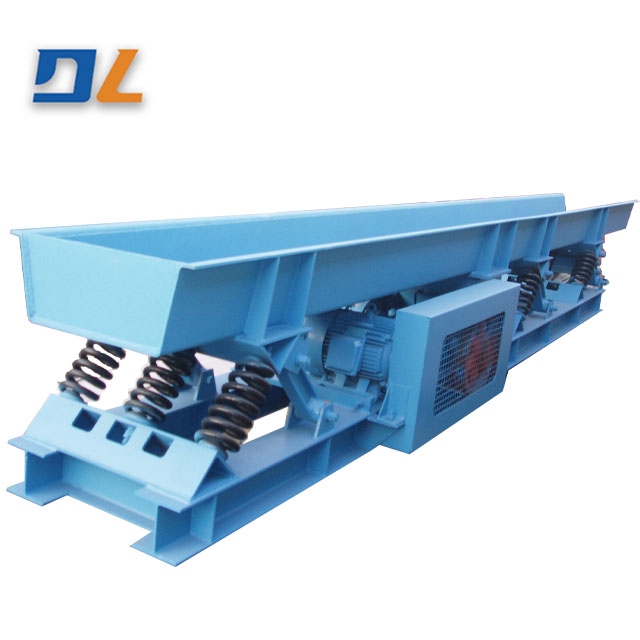

The equipment is used for conveying small castings, pouring caps and casting sand.
feature:
1. The machine runs smoothly, with low energy consumption and low noise.
2. The bearing capacity is large, and it can convey multiple molding lines for high temperature casting production at the same time.
3. The casting is in a sliding state during the conveying process, which can cool and vibrate the old sand on the surface at the same time.
4. The machine can be used in series to realize long-distance mountain-climbing transportation.
5. This model applies for national patent.
The main technical parameters:
model | Y368 | Y369 | Y3610 | Y3612 |
Nominal groove width(mm) | 800 | 900 | 1000 | 1200 |
Nominal slot height(mm) | 350 | 350 | 390 | 420 |
Slot form | Open | Open | Open | Open |
Delivery volume(type/h) | 180 | 180 | 180 | 180 |
installation angle | Level | Level | Level | Level |
Power(kw) | 5.5 | 7.5 | 11 | 15 |
